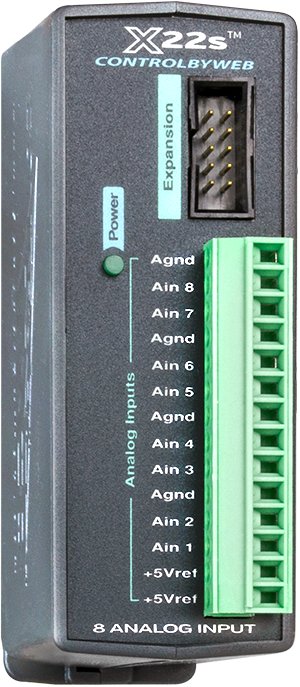

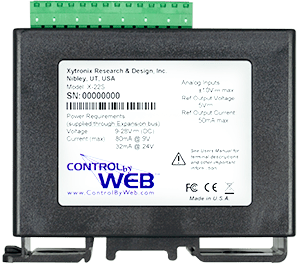

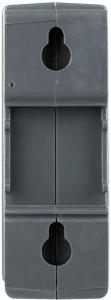

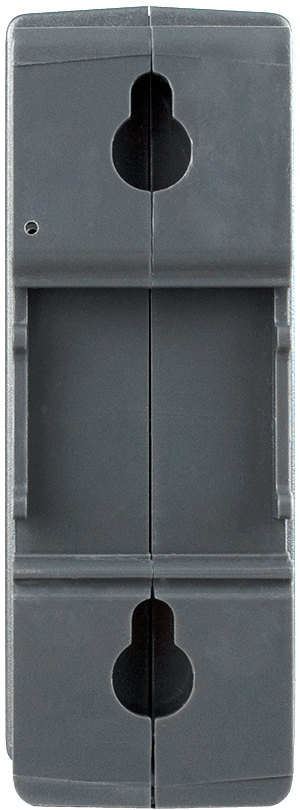

Flexible Analog Monitoring
The X-22S™ is ideal for measuring precision analog voltages. This includes monitoring temperature, electrical current, pressure, and fluid levels. It is a great fit for environmental monitoring, wastewater, and greenhouse applications.
The X-22S™ employs a 16-bit SAR A/D converter and can make both single or differential input measurements. A 5.0V reference output can be used to power potentiometers or other resistance sensing sensors. One or more X-22S™ expansion modules can be connected with a ribbon cable that provides both power and communication.
X-22S™ Features
- 8 precision analog inputs
- Input Voltage Ranges: ±1.28V, ±2.56V, ±5.12V, ±10.24V, 4-20mA
- Removable terminal connector
- Powered through expansion bus (no separate power supply connections are required)
- High input impedance
X-22S Master Devices
-
X-400™ | Modular I/O Controller
$299.99 – $399.99View Product This product has multiple variants. The options may be chosen on the product pageThe X-400™ is a web-enabled controller that allows for up to 32 added expansion modules and/or remote I/O devices. Expansion modules are connected directly to the X-400 via ribbon cable, or remotely with other CBW devices via P2P—allowing for monitoring and control of up to 64 I/O. The X-400C offers wireless capability with a built-in cellular modem.- Expandable, Up to 64 I/O
- Relays, Analog & Digital Inputs
- Up to 16 temp sensors
- Cellular version available
[frequentlyBought ids="7635,34491,7624,7577"]
-

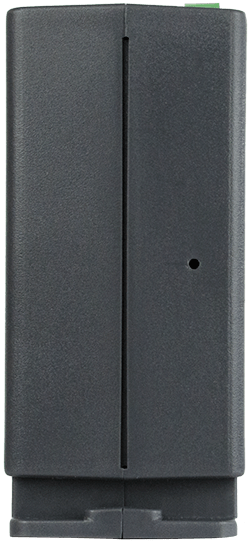

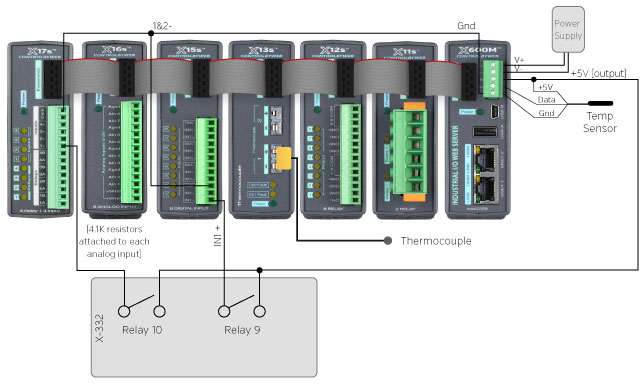

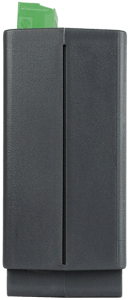

X-600M™ | Web-Enabled I/O Controller
$549.99View Product This product has multiple variants. The options may be chosen on the product pageThe X-600M™ is one of the most capable and flexible ControlByWeb PLCs. Add up to 64 expansion modules and remotely monitor and control up to 1,024 I/O. Create custom logic through the X-600M interface and run your application through a built-in web server and web browser. - Expandable, Up to 1,024 I/O
- Relays, Analog/Digital/Thermocouple Inputs
- Up to 32 Temperature Sensors
- GUI Dashboard
[frequentlyBought ids="7635,7621,7318,7289"]
