X-300™ | Temp Monitoring & Thermostat

3 Relays

1 Wire-Bus

Up to 8 temp sensors

This product is currently out of stock and unavailable.

X-410 Web-Enabled Industrial Controller

Check out our new X-410 model!
Better user interface, more features, lower price.
For any questions or concerns our sales department.

The X-300™ is two products in one package:

Temperature Logging

First, the X-300™ is a powerful web-based temperature logging instrument that allows you to monitor and control temperatures via an IP network. Up to 8 temperature sensors can be connected at a time.

Temperatures can be viewed in real-time using a web browser. In addition, the X-300™ has many advanced features including email alerts, relay control, a BASIC interpreter, and much more.

Web-Enabled Thermostat

Second, the X-300™ is a 7-day programmable web-enabled thermostat. Users can adjust and set temperatures for heating and cooling systems and view current indoor and outdoor temperatures from any web browser.

As a web thermostat, it provides an attractive control web page that works great on desktop computers as well as smartphones such as the iPhone® and other mobile digital devices.

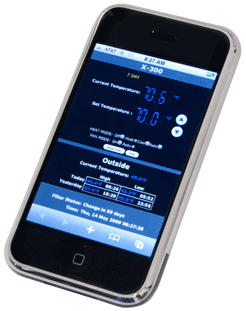

iPhone Example Image

Thermostat control web page shown on iPhone®. (iPhone® not included.)

Features

  • Web-browser based – no software required
  • Email alerts
  • Three, independently controlled 3A relays
  • Field updatable
  • Built-In real-time clock w/ capacitor backup
  • Temperature Logger
  • Supports HTTP, TCP, SNMP, Modbus/TCP
  • Supports additional data logging and management from web services
  • Internal temperature and voltage monitoring for diagnostics
  • Wide operating temperature range
  • Removable terminal connector for convenient wiring
  • Compact, DIN-Rail mountable enclosure
  • Measurement Range: -67°F to 257°F (-55°C to +125°C)
  • The temperature logger can receive data from up to 8 temperature sensors
  • Supports BASIC scripts for advanced configuration
  • Attractive thermostat user interface
  • Connect up to 3 sensors
  • 7 day programming schedule
  • Connect to single stage heating/cooling system

Setup is simple; There is no app to download, no subscription to buy, no software required, and no programming necessary for setup or use.

 Applications

The X-300 is versatile and has many applications. A few examples are listed below.

The X-300’s powerful and flexible design make imagination its only limit.

X-300 Users Manual (PDF)

X-300 Module Quick Start Guide (PDF)
